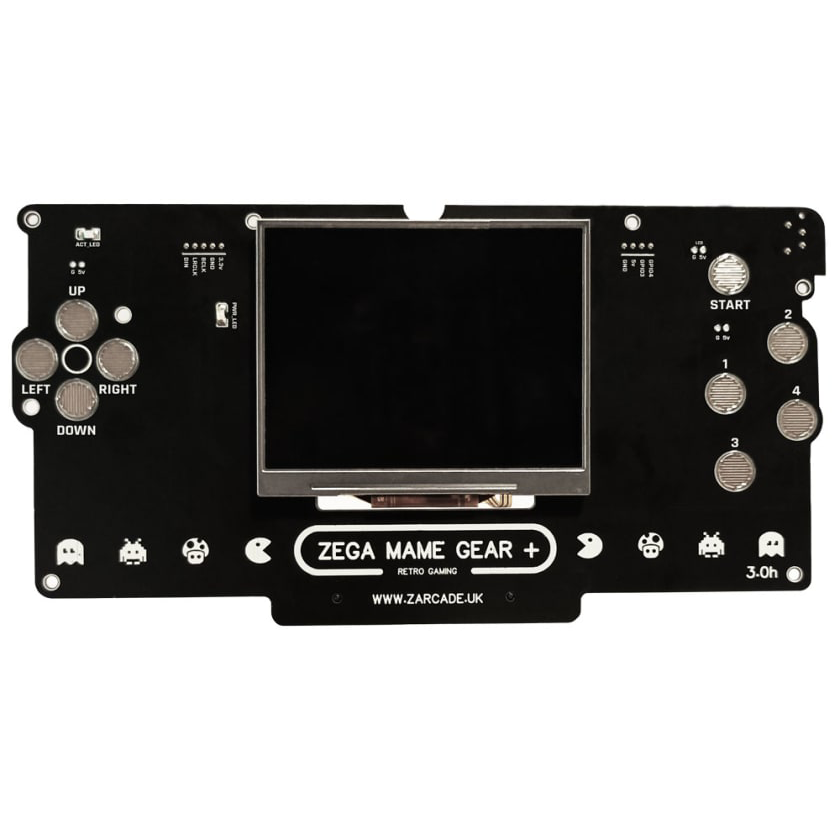

game gear retropie Zega Mame Gear Raspberry Pi Mod Pre-Soldered Kit - Zarcade LimitedAll clearance items are final sale and cannot be returned, exchanged, or refunded. Created by Zarcade Limited, the Zega Mame Gear is a custom made drop in kit that fits perfectly into any Sega Game Gear shell without any modification and no soldering. It runs on a Raspberry Pi 3a+, Zero, Zero 2 and even a CM4 with the optional CM4 adapter, giving you access to thousands of retro games with Retropie. Pre configured images are available to download so

FEATURES:

• 4 Front button support
• Plug and Play
• External access to USB and SD Card (Optional)
• Connect to a TV with HDMI out (Optional)
• Digital Audio
• Safe shutdown and power-off
• Battery Level Indicator
• USB-C Charging
• Pre-configured images
• Zega Mame Gear with 3.5" Composite LCD

INCLUDED:

• 1x Mainboard
• 1x 3.2 inch Serial LCD
• 1x Digital Audio Board
• 1x USB-C Powerboard with battery charger, battery level and safe shutdown
• 1x Speaker
• 1x 4 wire Mainboard to Power board connector
• 1x 5 wire Mainboard to Audio board connector
• 1x Ribbon
• 1x 3D printed (Resin) Select button pre-soldered to Mainboard
• 1x HDMI Adapter for Raspberry Pi Zero or Zero 2

PAIRS WELL WITH:

• Zega Mame Gear Button Bracket
• Zega Mame Gear Battery Extension Cables
• 40 Pin Male Header for the Raspberry Pi (2.54 Pitch)

DOCUMENTATION:

• Mame Gear Pre-Install Checks Guide
• Zega Mame Gear Support Portal
• Downloads/STL Files/Images
• Recommend Batteries (Battery is NOT included with this kit and must be purchased separately). You will also need to purchase separately the Battery Extension cables.

NOTES:

• Mame Gear requires a Raspberry Pi with a header. If you have a Pi with a pre-installed header, no soldering required. If not, you will be required to solder the header to the Pi.
• Although not required, adding the additional 2 front buttons will open up more games to play on the Zega Mame Gear. Some shell modification is required. You can also purchase a ready drilled shell from the Zega store.
• With the optional Zega Mame Gear expansion board, you can easily access the SD card and connect a USB device such as a Game Controller
• PCB color may vary.
• Raspberry Pi, shell, buttons, membranes, lens, battery not included.

WARNINGS:

• Please ensure you are confident in your soldering ability to attempt this project. Under no circumstances will any refunds/replacements be made if soldering has been attempted.
